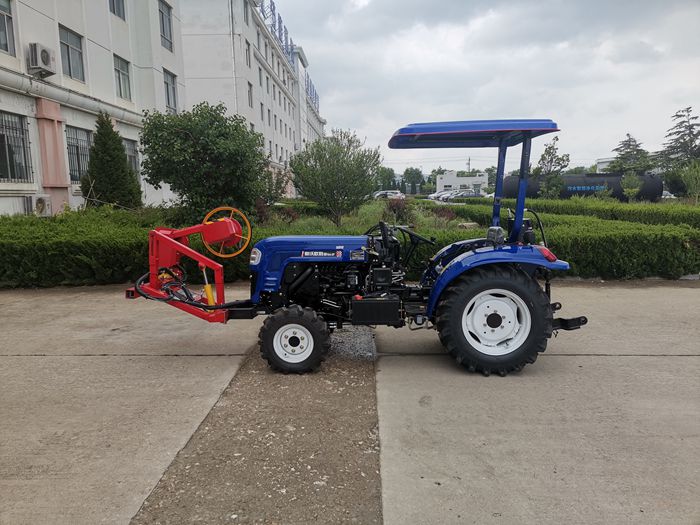

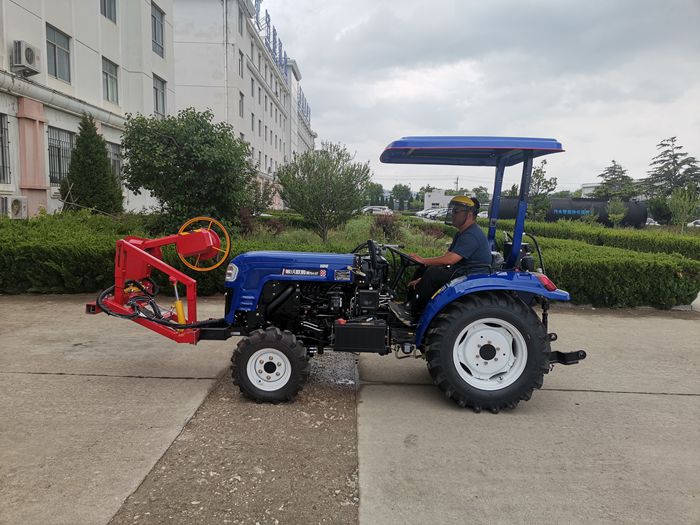

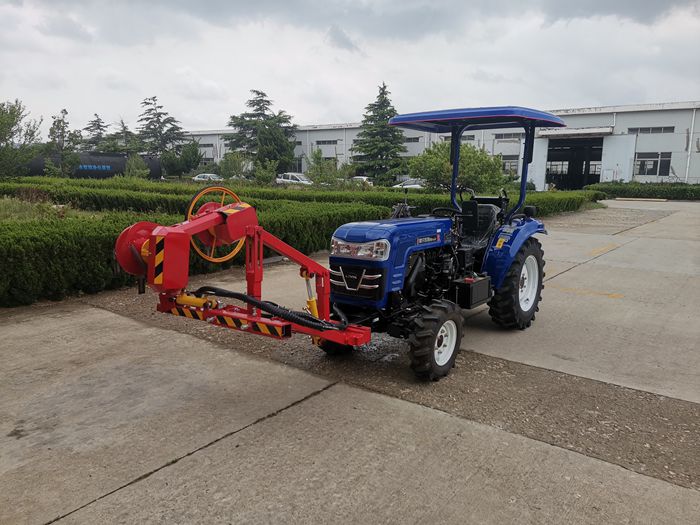

OAM900A果樹樹下避障割草機(簡易型)
OAM900A Obstacle avoidance mower under fruit trees (simple type)
描述Description::
果樹樹下避障割草機 是中頤公司 為解決現代化果園果樹樹下割草缺乏相應裝備而研發的一款結構簡單、操作便捷的 拖拉機前置懸掛 全液壓傳動割草機。該機所有動作均由液壓傳動與控制,操作者可根據不同工況、地貌靈活調節切削角度,靈活調整刀盤高度;避障機構采用可調整漲緊力的彈簧機構+滾輪機構,結構簡單而不易損壞;割刀部分采用2組8片甩刀,割草效率高且不易纏草;割草機安裝在拖拉機前方,及其方便操作者觀察前方工況,靈活調整割草機狀態。
The obstacle avoidance mower under fruit trees is a fully hydraulic drive mower with simple structure and convenient operation, which is developed by Zhongyi Company to solve the problem of the lack of corresponding equipment for mowing under fruit trees in modern orchards. All movements of the machine are hydraulically driven and controlled. The operator can flexibly adjust the cutting angle and cutter head height according to different working conditions and landforms; The obstacle avoidance mechanism adopts a spring mechanism with adjustable tension force+a roller mechanism, which is simple in structure and not easy to be damaged; Two groups of 8 flail knives are used for the cutter part, which has high cutting efficiency and is not easy to wrap grass; The mower is installed in front of the tractor, which is convenient for the operator to observe the working conditions ahead and flexibly adjust the state of the mower.
果樹樹下避障割草機(簡易型)主要參數
Main parameters of obstacle avoidance mower under fruit trees (simple type)
序號 Serial No. | 項目 Item | 單位 Unit | 主要參數 Main parameter |
1 | 型號名稱 Model Name | / | 避障割草機 Obstacle avoidance mower |
2 | 刀盤高度升降幅度 Height rise and fall of cutter head | mm | 400 |
3 | 刀盤左右調節幅度 Left and right adjustment range of cutter head | mm | 700 |
4 | 刀盤割幅Cutter head cutting range | mm | 900 |
5 | 安裝方式Installation method | / | 拖拉機前置懸掛 Tractor front suspension |
6 | 配套動力Supporting power | Kw | ≥22Kw 拖拉機 Tractor |
7 | 配套拖拉機配置要求 Matching tractor configuration requirements | / | ≥1組液壓輸出 液壓系統流量≥20L ≥ 1 group of hydraulic output Hydraulic system flow ≥ 20L |
※選裝配置Optional:
獨立液壓站 Independent hydraulic station
*參數表僅描述了基本參數,高配高功率及選裝配置參數請咨詢中頤公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*規格參數及外觀,隨產品開發不斷更新,具體參數請咨詢中頤公司,以中頤公司最新參數為準,以上參數不作為整機驗收依據。咨詢電話 4008-400-232
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
