4GP-1200E  電驅動 采摘作業平臺

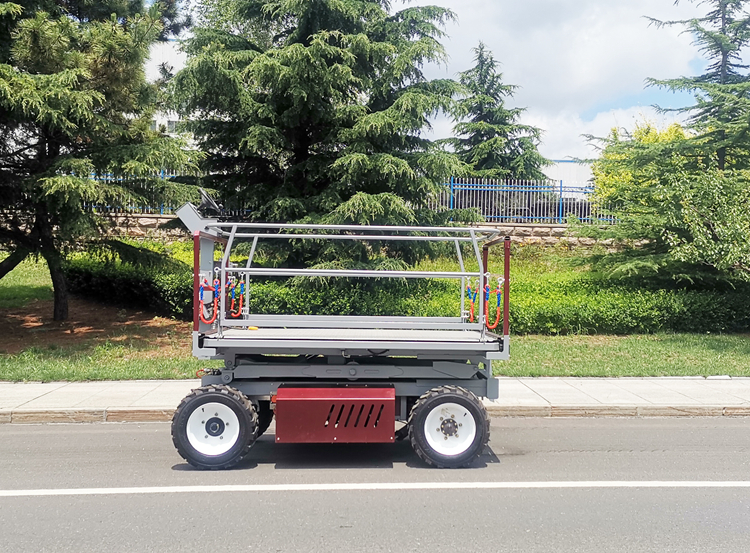

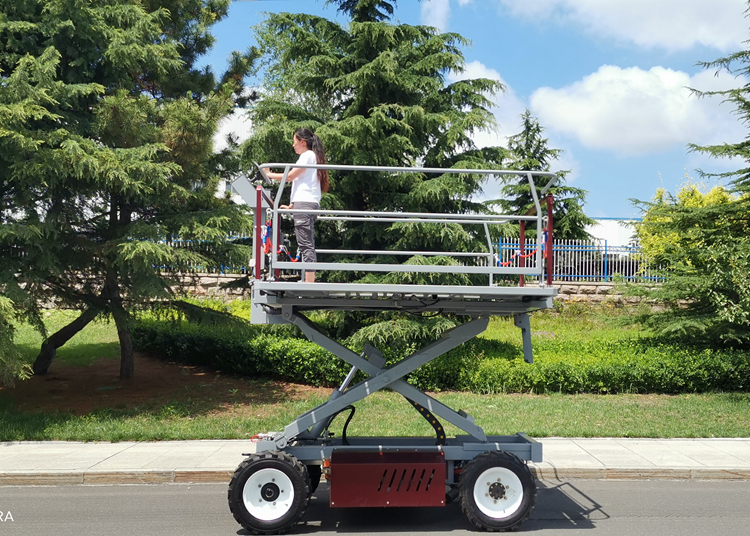

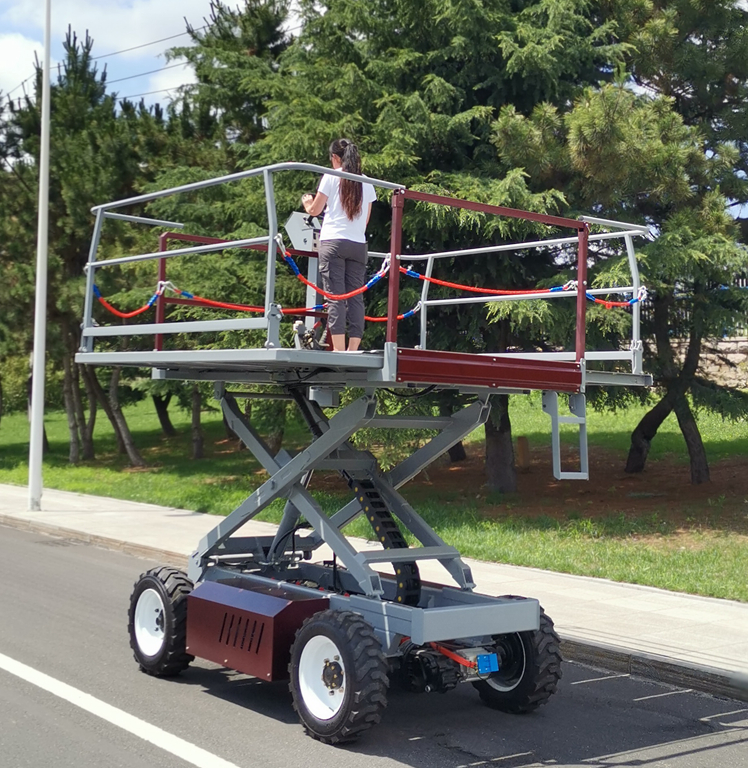

4GP-1200E electric drive picking platform

描述Description：

4GP-1200E  電驅動 采摘作業平臺是1200型采摘作業平臺的短軸距版本，主要是為了適應部分中大型農場地頭轉彎場地不足的問題。除了軸距縮短、舉升高度降低、工作臺面相應減小外，其它性能同1200。

The 4GP-1200E electric drive picking platform is a short wheelbase version of the 1200 type picking platform, which is mainly used to adapt to the problem of insufficient turning fields in some medium and large farms. Except that the wheelbase is shortened, the lifting height is reduced, and the worktable is reduced correspondingly, other performances are the same as 1200.

適合作物：蘋果、梨、櫻桃、桃子、柑橘、煙草、立體種植的蔬菜等

Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc

適合用戶群： 中大規模園區

Suitable for user groups: medium and large-scale parks

●綠色新能源 “零”噪聲污染

●Green new energy, “zero” noise pollution

●運行費用低 每天幾元電費 經濟性強

●Cheap and effective, it costs as low as a few money daily

●操控簡單易學 行走無級調速

●Easy to operate and learn  Stepless speed regulation for walking

●采用高強度車身結構

● High strength body structure

●采用“零”落差工作臺面 設計

● "Zero" drop worktable design

●采用傾角可調護欄結構

● Adopt adjustable angle guardrail structure

●采用名牌電器件 電控系統可靠耐用

●Brand electrical components are used, ensures reliable and durable electrical control system

●采用商用車輛高標準線束

● High standard harness of commercial vehicles

●采用大容量名牌動力蓄電池使用壽命長

●High capacity brand battery is used, ensures a long service life

●采用高標準車載充電裝置

● High standard on-board charging device

●采用名牌液壓部件

● Hydraulic pipe fittings with famous brands

●整機結構件激光切割成型 精度極高

●Complete machine structure is formed by laser cutting with high precision

●全系標配 加寬越野輪胎

●Standard widened off-road tire are equipped as a standard for the whole series

●采用抗紫外線耐候油漆涂層

●UV resistant and weather resistant paint coating

●行走系統帶有動能回收功能

● The traveling system has the function of kinetic energy recovery

●一次充電可持續工作8-32小時

●8 to 32  hours of continuous operation on a single charge

4GP-1200E 果園采摘作業平臺 產品規格表

Product Specification Table of 4GP-1200E Orchard Picking Platform

4GP-1200E基本型三電配置：  鉛酸動力蓄電池(加水)+直流無刷電機+直流電控

4GP-1200E basic three electricity configuration: lead acid power battery (adding water)+DC brushless motor + DC electric control

※選裝配置Optional：

A 增程發電機  A Extended range generator

B 電子制動    B Electronic brake

C MP3 播放器  C MP3 player

D 夜間工作燈  D Night work light

E 遮陽蓬      E Sunshade

F 太陽能輔助發電系統  F Solar auxiliary power generation system

G 后舉升叉系統 G Rear lifting fork system

H 免維護動力蓄電池 H Maintenance free traction battery

I  護欄置物袋   I Guardrail storage bag

J  折疊座椅     J Folding seats

K  220V AC 交流輸出 K 220V AC output

L 前舉升叉系統  L Front lifting fork system

*參數表僅描述了基本型參數，選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。 咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
