底盤升降果筐運輸車

聯系中頤

產品屬性

所屬類別：果園搬運車系列
商品來源：中頤農裝
瀏覽次數：307
發布日期：2022-09-09 08:07:05

產品概述

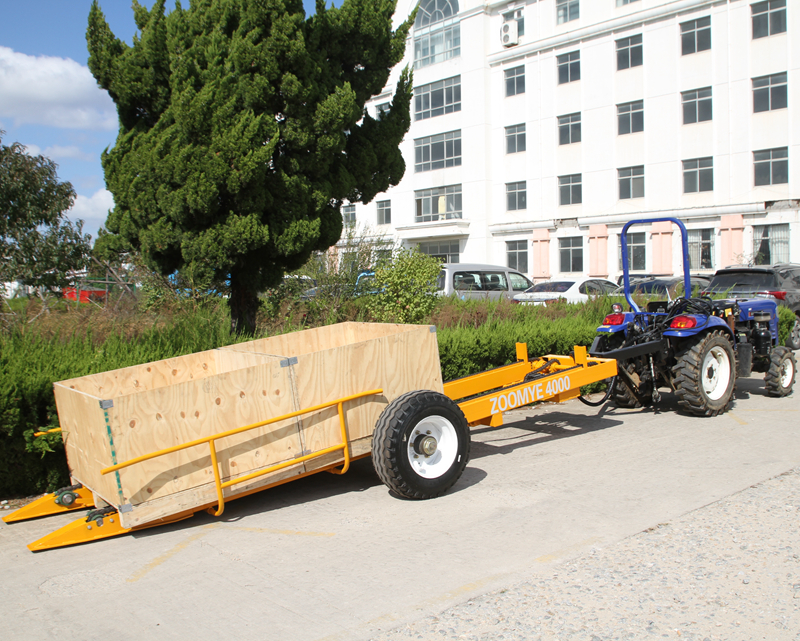

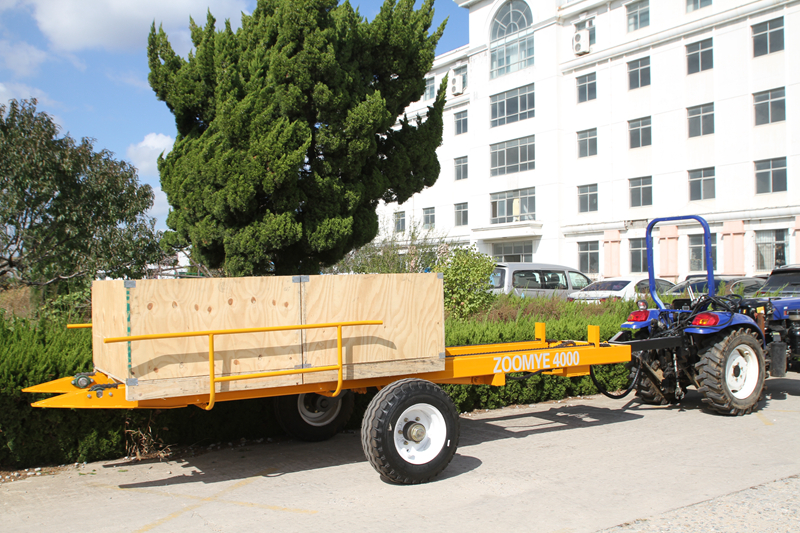

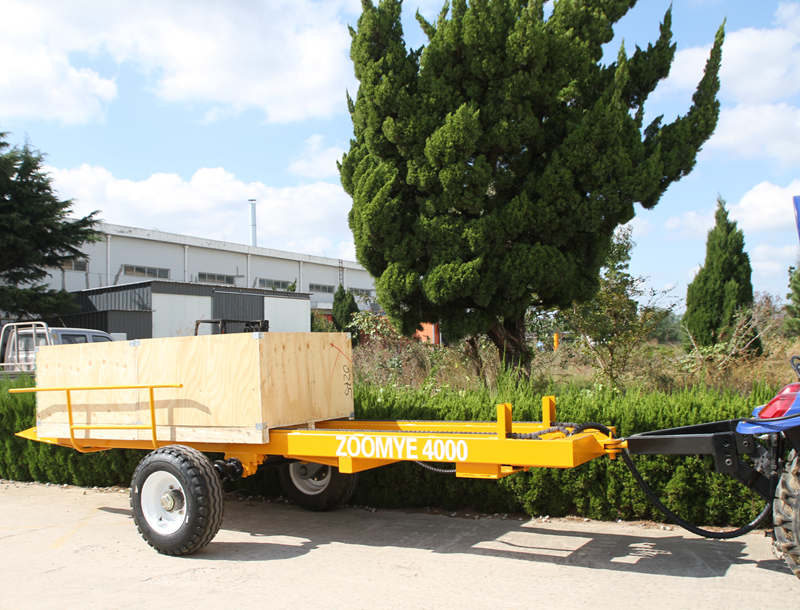

TT2W0-A*底盤升降果筐拖車

TT2W0-A * chassis lifting fruit basket trailer

描述Description:

底盤升降果筐拖車是中頤公司為解決現代化果園周轉大型標準果筐（例如：運輸分發空果筐和回收采收滿果實的果筐）而研發的智慧轉運裝備。拖車與拖拉機配套使用，拖車車軸在液壓油缸作用下可進行升降（升降幅度可定制），帶有液壓鉸鏈裝置的車架縱梁尾部鴨嘴型叉頭在油缸作用下可完美貼合地面，很容易叉入果筐底部，此時由液壓鉸鏈將果筐鉸送裝車。該拖車可一次裝載3-5個標準果筐（長度可定制），是背負式叉車之外另一個轉運果筐的好方法。

The chassis lifting fruit basket trailer is a smart transport equipment developed by CEA to solve the problem of modern orchard turnover of large standard fruit baskets (such as transportation and distribution of empty fruit baskets and recycling of fruit baskets full of fruits). The trailer is used together with the tractor. The trailer axle can be lifted and lowered under the action of the hydraulic oil cylinder (the lifting range can be customized). The duckbill fork head at the end of the frame longitudinal beam with the hydraulic hinge device can fit perfectly to the ground under the action of the oil cylinder, and it is easy to fork into the bottom of the fruit basket. At this time, the fruit basket is hinged to the truck by the hydraulic hinge. The trailer can load 3-5 standard fruit baskets at a time (the length can be customized), which is a good way to transfer fruit baskets other than backpack forklift.

TT2W0-A*底盤升降果筐拖車 產品規格表

Product Specification Table of TT2W0-A * Chassis Lifting Fruit Basket Trailer

序號 Serial No.	項目 Item	單位 Unit	主要參數 Main Parameter
1	產品型號Model Name	/	TT2W0-A* 底盤升降果筐拖車 Chassis Lifting Fruit Basket Trailer
2	結構型式Structural Style	/	牽引式Traction type
3	配套動力Supporting power	kW	≥22
4	外形尺寸（長×寬×高） Overall dimension(LWH)	mm	5925x1965x1140（可定制） (Customizable)
5	額定載荷Rated load	kg	2000
6	輪胎型號Tire type	/	10.0/65-16
7	轉彎半徑（與拖拉機相關） Turning radius (Related to tractors)	m	約5.2（雷沃M704拖拉機牽引） Abt. 5.2 (towed by Lovol M704)
8	升降高度范圍 Lifting height range	mm	0-825mm(可定制) (Customizable)

※選裝配置Optional:

C車載液壓站 On board hydraulic station

*參數表僅描述了基本參數，高配高功率及選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
